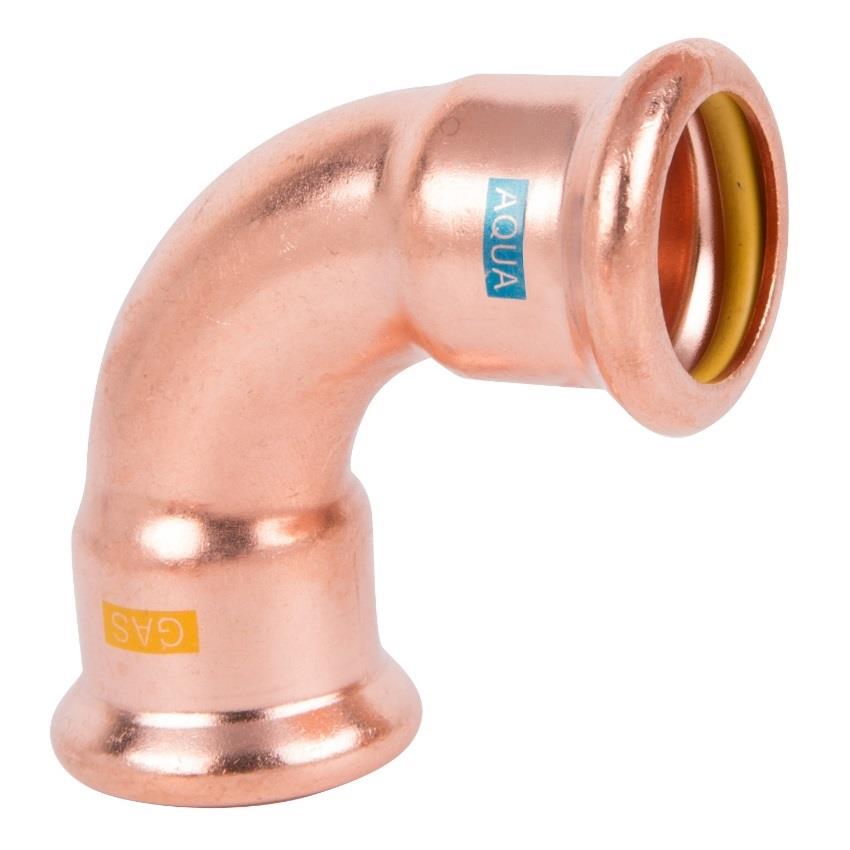

PCC PRESS COPPER AQUAGAS M 28mm 90Deg Elbow, 792002828

PCC PRESS COPPER AQUAGAS M 28mm 90 Degree Elbow, 792002828.

PCC PRESS COPPER AQUAGAS M is a new universal press fittings range - a copper (and/or brass) fitting that can be used in Gas (classed and according to DVGW G 5614), Heating and Potable Water application (classed and according to DVGW W 534). This means that it is no longer needed to carry both ranges of fittings (warehouse optimisation).

Product features:

- Brand: PCC GmbH.
- Range: PRESS COPPER AQUAGAS M.
- Profile: M Profile/M-Press.
- Part number: 792002828 (previous part number 992002828).
- Material: CW024A (EN Cu-DHP) Copper according to EN 1254 (for installations with seamless copper pipes (semi-hard and hard) manufactured to BS EN 1057 and according DVGW GW 392).
- O-ring/Seal: 2 x NBR (Yellow/universal).
- Fitting type: 90 degree elbow/bend.
- Size: 28mm.
- Connections: Female Press x Female Press.
- Max. working pressure:
·%26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;Gas installations with NG/LPG: 5.0 bar;
·%26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;Potable Water/Water Heating Systems: 16.0 bar.
- Working temperature:
·%26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;Gas installations with NG/LPG: -20°C - +70°C;
·%26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;%26%26nbsp;Potable Water/Water Heating Systems: -20°C - +95°C.
- Demountable/Reusable: No.
- Application: Potable (drinking/purified) Water / Cooling (chilled) Water / Boosted Cold Water / Water Heating Systems / Natural and LPG Gas / Plant Rooms / Flammable Gases (classed and according to DVGW G 260).
- Installation: Requires no soldering, adhesives, compounds, gas or hot works. Use of suitable crimping tool required to seal and secure the product to pipework (no hand/manual tooling).
- Certification/Approvals: WRAS (approval number 2312074) / DVGW (certificate number DV-8535CT0329) / KVBG (certificate number C-19-3801-A) / GOST / SGR / SZU.
- Compatible with the following press fittings: M-Press / MasterFlow / Pegler Yorkshire VSH Xpress / Geberit Mapress / SANHA.
