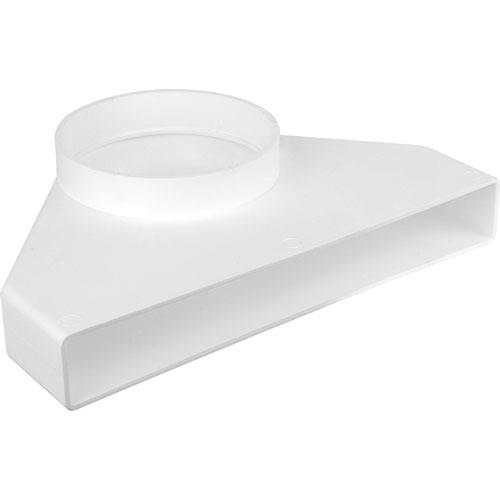

Part No. 1640 - Manrose 234mm x 29mm Slim Flat Channel Ducting 90º Elbow Bend Adaptor/Plenum With Ø100mm (4'') Fixed Spigot.
Slim Flat Channel Ducting System is designed to ensure effective ventilation in confined areas such as under floor, cavity walls etc. and suitable for use with extractor fans in bathrooms and toilets when space is very restricted. It is easily concealed and is an effective choice if other systems cannot be fitted.
90º Elbow Bend/Adaptor/Plenum connects Slim Flat Channel Ducting to Straight Round Ø100mm Pipe/Flexi Hose or appliance with round Ø100mm spigot at 90 degree angle - round connector - Ø100mm (4'') inside - connects to round Ø100mm (4'') pipe/spigot using Manrose Round Pipe Connector (Part No. 414C); rectangular connector (female) - 234mm x 29mm inside - fits over 234mm x 29mm slim flat channel duct.
- Dimensions: 234mm x 29mm : Ø100mm (4'').
- For use with the Slim Flat Channel Systems.
- Maximum working temperature: of 60° C.
- Material: uPVC.
- Flame retardant.
- Colour: White.
Equivalent of Polypipe Ventilation/Domus (Polyvent 225) Product No. 2013
