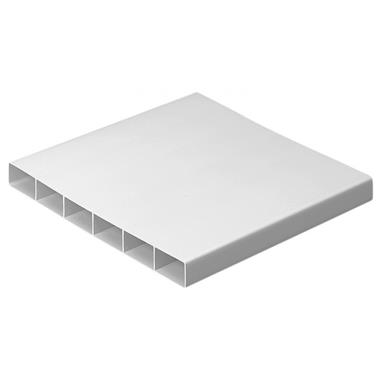

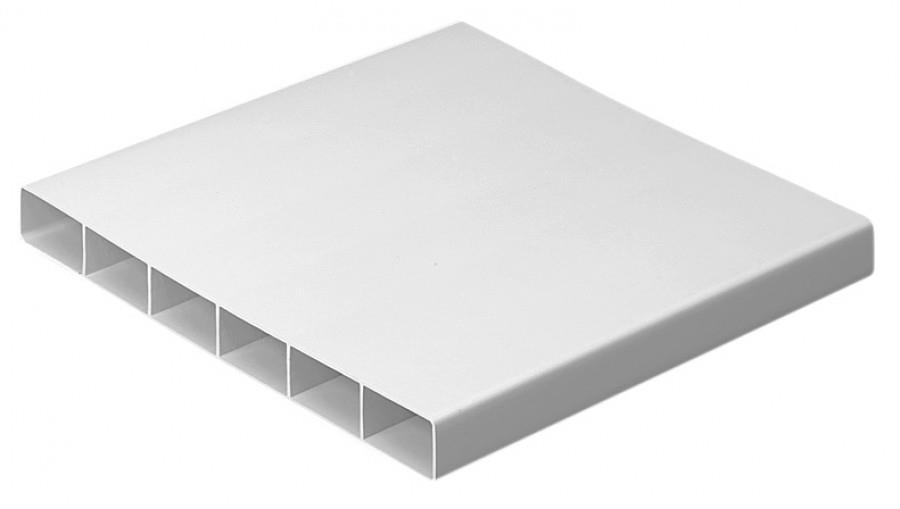

Part No. 1510 - Manrose 308mm x 29mm (Inner Dimensions: 300mm x 25 mm) Slim Flat Channel Ducting - 2 meters.
Slim Flat Channel Ducting System is designed to ensure effective ventilation in confined areas such as under floor, cavity walls etc. and suitable for use with extractor fans in bathrooms and toilets when space is very restricted. It is easily concealed and is an effective choice if other systems cannot be fitted.
308mm x 29mm Slim Flat Channel Ducting system particularly appropriate for longer duct runs combined with appliances having low extraction rates, such as in bathrooms, toilets and utility rooms. For short duct runs, use 234mm x 29mm System.
- For use with the Slim Flat Channel Systems.
- Dimensions: 308mm x 29mm (Inner Dimensions: 300mm x 25 mm).
- Length: 2 meters.
- Maximum extraction rate capacity: 250m3/hr.
- Cross section area: 7,837mm2.
- Appliance connection size: Ø100mm.
- Minimum installation space required: 314mm x 35mm.
- Maximum working temperature: of 60° C.
- Material: uPVC.
- Flame retardant.
- Colour: White.
Equivalent of Polypipe Ventilation/Domus (Polyvent 300) Product No. 30200
